Description

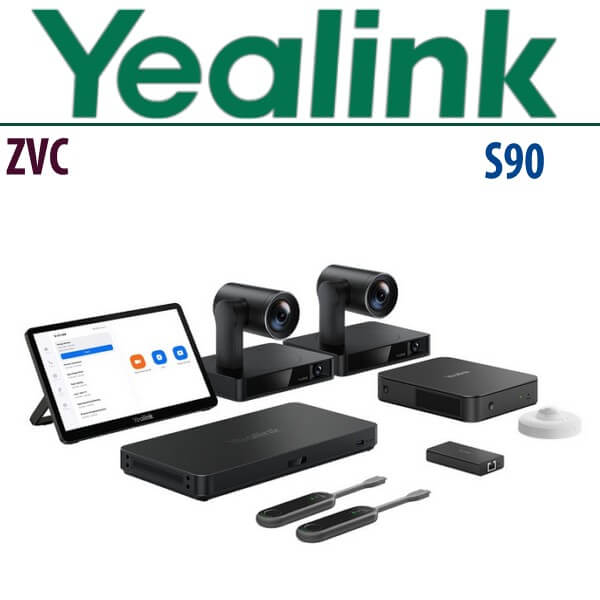

Yealink ZVC S90 Dubai

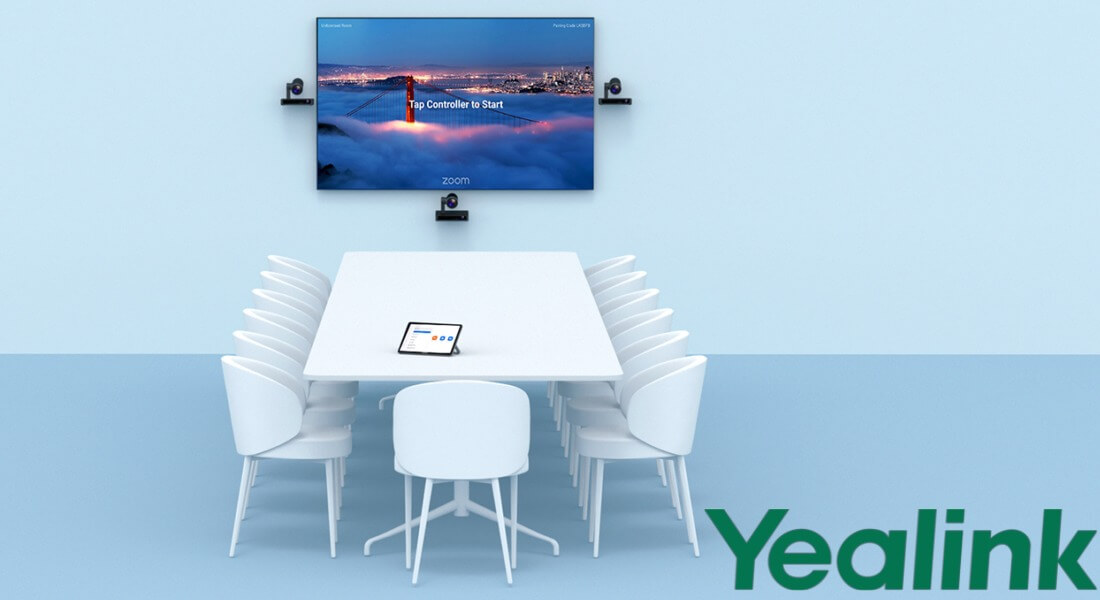

The Yealink ZVC S90 Dubai is specifically crafted for large conference spaces. It encompasses the latest-generation MINI-PC M Core Pro, the M Touch Plus touch panel, the intelligent 4K PTZ camera UVC86, and the AVHub tailored for audio and video processing. The AVHub facilitates screen layout adjustments and introduces Yealink’s unique multi camera solution, accommodating up to 9 simultaneous camera connections. It enables multi-speaker tracking with voice incentive mechanisms, catering to the diverse needs of large and extra-large meeting rooms, classrooms, and training spaces. The ZVC S90 set includes two UVC86 cameras with 12x optical zoom and intelligent tracking capabilities. Through the MTouch Plus control panel and Yealink Room Connect, users can independently control cameras and switch layouts. Integration with the ZVC-BYOD-Extender allows seamless utilization of audio and video equipment across the entire system with a simple USB connection to the PC, transforming a Zoom meeting room into a versatile space. Furthermore, multiple ZVC S90 series sets can be networked together via Ethernet for flexible configuration and division of conference room systems.

Yealink ZVC S90 Features

Multi-cam solution, Flexible layout: By utilizing the AVHub audio and video processor, Yealink enables a multi-camera solution that can accommodate up to 9 Yealink cameras. It is possible to combine several sets of ZVC S90 series using network cables to create a conference room system that offers flexible merging and division capabilities.

Big and flexible conference control experience: The Yealink third-generation touch panel, MTouch Plus, featuring an 11.6-inch narrow-frame touch interface, stands out as the flagship product of Yealink’s third-generation lineup. Its flexible deployment options allow us to position each panel according to the specific requirements of the conference room, enabling complete control over the conference proceedings.

Intelligent tracking, Free your hands: The Yealink UVC86 intelligent PTZ camera offers a range of advanced tracking features, including Auto-framing, Speaker Tracking, and Presenter Tracking. With Speaker Tracking, the UVC86 can automatically frame the speaker without manual intervention, supporting region trigger functionality. Additionally, it features gesture control for convenient operation in any situation. Utilizing the Yealink camera plug-in controller, users can effortlessly switch between up to 9 preset positions and quickly toggle between tracking modes with a single step adjustment. The UVC86 delivers stunning 4K video output and boasts a 12x optical zoom lens for crisp, lossless images. With the UVC86, enjoy seamless face-to-face communication.

Flexible audio, Flexible connectivity: Users have the option to utilize either wired (VCM35, VCM38 Ceiling microphone) or wireless (VCM36-W, CPW65) microphones for audio capture. They can adapt to various conference room setups, including desktop and ceiling placements. Yealink incorporates a unique sound processing algorithm that dynamically reduces reverberation and background noise in real-time, ensuring clear voice communication regardless of ambient conditions. Additionally, through collaborations with third-party manufacturers like Biamp, Nureva, Shure, and YAMAHA, the S90 system can integrate and support their devices for seamless access to the conference system.

Simple to deploy, Easy to use: Yealink audio and video systems, equipped with VCH and USB ports, are tailored for video conferencing environments, facilitating seamless expansion. Additionally, Yealink MCore Pro’s cable management functionality ensures stable wire connections, allowing for optimal deployment based on the meeting room layout. Using just one CAT5e cable, connectivity between the TV area and conference table area is achieved, streamlining deployment and reducing costs by eliminating the need for extra power supplies or extension cables.

Manage your devices remotely:  This solution enables seamless management, monitoring, configuration, updates, and diagnostics of all Yealink audio and video device peripherals through the Yealink Device Management Platform/Cloud Service, allowing remote access and control.

Yealink ZVC S90 Specifications

• Package Content
  • MCore Pro, Gen-3 Mini-PC
  • MTouch Plus, Gen-3 touch panel
  • AVHub, audio and video processor
  • 2 x UVC86 USB PTZ camera
  • 2 x WPP30 wireless presentation pod
  • Room Sensor, meeting room sensor
• Preload
  • Windows 10 IoT Enterprise X64 / Windows 11* IoT Enterprise X64
  • Windows 10 IoT Enterprise License
  • Zoom Rooms App
  • Yealink Room Connect

• MCore Pro, Gen-3 Mini-PC
  • 11th Gen Intel® Core i5
  • Memory: 8 GB (2 x 4GB)
  • Storage: 128 GB SSD
  • 3x HDMI video output with CEC supported
  • 0
  • Kernel DMA
  • EDID
  • Wi-Fi: IEEE 802.11 a/b/g/n/ac/ax
  • Bluetooth: BT 5.2
  • 1 x Yealink MTouch port (RJ45), connect to MTouch Plus / MTouch E2
  • 4 x USB 3.0 Type-A
  • 1 x 10/100/1000M Ethernet port
  • 1 x Power port
  • 1 x Security lock slot, Integrated cable management
• MTouch Plus
  • 6-inch narrow bezel IPS display
  • 1920 x 1080 video resolution
  • Angle between screen and desktop (30° ~ 70°)
  • Adjustable angle of support frame (50° ~ 180°)
  • Support wired and wireless (with WPP30) content sharing
  • Support multi-screen control*
  • Support third-party screen sharing*
  • Support external PD power supply to power the sharing device
  • Support HDMI/USB-C video input
  • Support desktop placement, desktop fixed, wall-mounted deployment
• Room Sensor
  • Detection angle: 120°
  • Adjustable detection angle: ±20°
  • Operating temperature: 0-40℃
  • Operating humidity: 10-95%
  • Power: Battery powered, 4-year life
• AVHub, audio and video processor
  • 2 x USB-A port
  • 1 x USB-B port
  • 1 x Codec port
  • 7 x Yealink VCH port (RJ-45)
  • 1 x RCA in/out interface
  • 1 x 6.3mm Line in interface
  • 1 x 6.3mm Line out interface
  • 1 x power interface
  • Dividable and merging meeting rooms are supported
  • Support intelligent multi-speaker tracking
  • Support wireless BYOD*
• UVC86 USB PTZ Camera
  • 4K Sensor
  • 4 × HD zoom (12x optical, 1.7x digital)
  • Angle of view:
    • -90° DFOV, 81° HFOV, 50° VFOV (Telephoto lens)
    • -120° DFOV, 110° HFOV, 78° VFOV (Panoramic lens)
  • Auto-framing
  • Speaker tracking
  • Presenter tracking, support area trigger and gesture control
  • Multi-focus
  • Picture-in-picture
  • Up to 9 preset positions can be set
  • Horizontal rotation: 200°
  • Vertical rotation: 130°
  • 1 x HDMI output
  • 1 x Yealink microphone port (RJ-45)
  • 1 x USB 3.0 Type-B port
  • 1 x USB 2.0 Type-A Port
  • 1 x Power Port
  • 1 x Security Lock
  • 1 x Reset Hole
• Package Features
  • W/CTN: 12.1 kg
  • W/CTN: 13.8 kg
  • Carton Meas: 935 mm x 413 mm x 312 mm
