Description

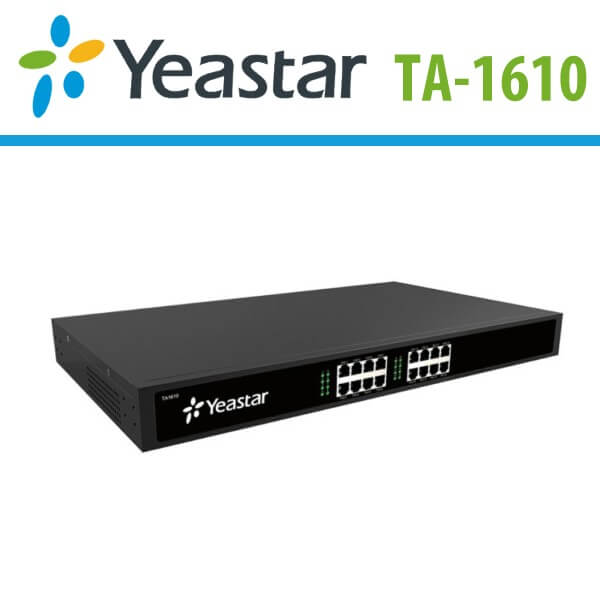

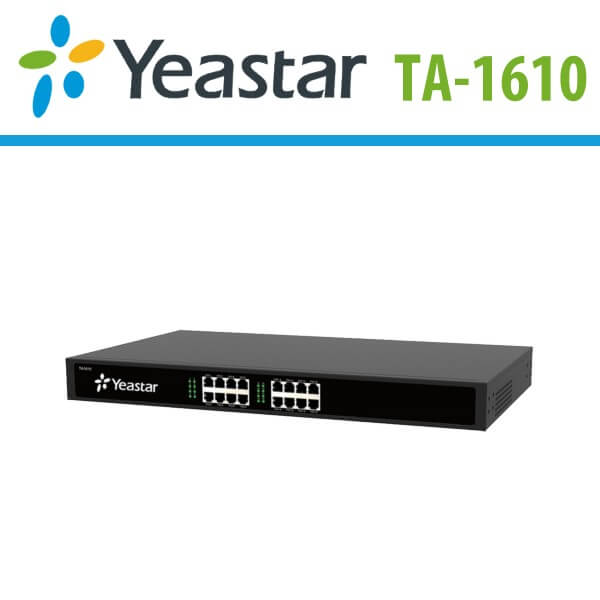

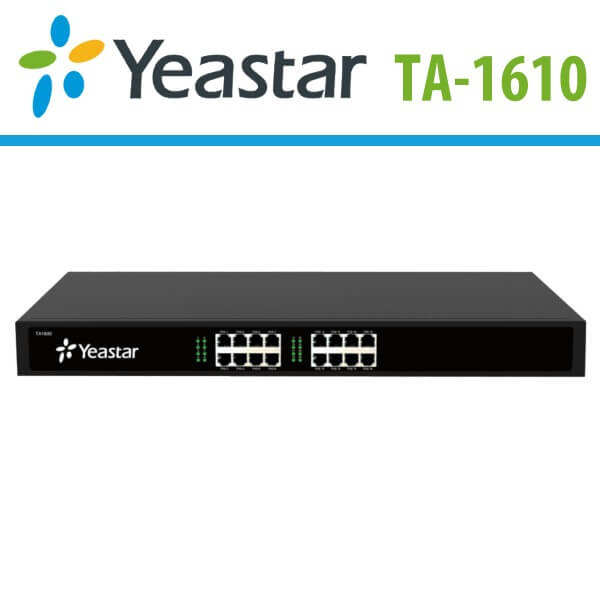

Yeastar TA1610 Dubai
The Yeastar TA1610 Dubai is a high-density analog telephone adapter that provides businesses with a cost-effective solution for connecting up to 16 analog phones or fax machines to a VoIP network. The device offers a range of advanced features and supports a wide range of voice codecs, making it an ideal choice for businesses of all sizes.
The Yeastar TA1610 Dubai is designed for reliability and high-density usage. It features a 1U rack-mountable design that can easily fit into a standard rack, and its compact size ensures that it doesn’t take up too much space. The device can support up to 16 analog phones or fax machines, making it an ideal choice for businesses that need to connect a large number of analog devices to a VoIP network.
One of the key advantages of the Yeastar TA1610 Dubai is its flexibility. The device supports a wide range of voice codecs, including G.711, G.723, G.726, G.729A/B, and iLBC. This allows businesses to choose the codec that best suits their needs, depending on factors such as bandwidth and call quality. The device also supports a range of advanced features such as caller ID, call waiting, call forwarding, and 3-way conferencing.
The Yeastar TA1610 Dubai can be easily configured using a web-based user interface. The user interface is intuitive and easy to use, even for non-technical users. It provides access to all the features of the device, including call routing, SIP trunking, and other advanced features. The device can be configured to work with a wide range of SIP-based VoIP providers, ensuring compatibility with most VoIP systems.
In terms of call quality, the Yeastar TA1610 Dubai offers excellent voice clarity and reliability. It uses advanced voice codecs and echo cancellation technology, which helps to eliminate any delays or distortion during calls. The device also supports T.38 fax relay, ensuring reliable fax transmission over a VoIP network.
The Yeastar TA1610 Dubai is designed for reliability and durability. It features a robust metal casing that protects it from physical damage and helps to dissipate heat. The device also supports a range of security features, including TLS, SRTP, and HTTPS, ensuring that all communications are secure and protected from eavesdropping and hacking.
Overall, the Yeastar TA1610 Dubai is an excellent choice for businesses that need to connect their analog equipment to a VoIP network. It offers a range of advanced features, including caller ID, call waiting, call forwarding, and 3-way conferencing, all at an affordable price point. Its flexibility, reliability, and ease of use make it an ideal solution for businesses of all sizes that need to connect a large number of analog devices to a VoIP network.
Yeastar TA1610 Specifications
Interfaces | |
Ports
Telephony Interfaces WAN LAN Indicators |
16 FXO Ports |
RJ11 and RJ21 50-pin Telco Connectors | |
1 10/100Mbps | |
1 10/100Mbps | |
Ports Status and Activity LEDs | |
Media Processing | |
Protocol Transport Codec
Voice Capability DTMF Mode Fax QoS |
SIP (RFC3261), IAX2 |
UDP, TCP, TLS, SRTP | |
G.711 (alaw/ulaw), G.722, G.723, G.726, G.729A/B, GSM, ADPCM | |
ITU-T G.168 LEC Echo Cancellation, Dynamic Jitter Buffer, PLC | |
RFC2833, SIP Info, In-band | |
T.30 | |
DiffServ, ToS, 802.1 P/Q VLAN tagging | |
Telephony Features | |
Call Handling |
Programmable AC Impedance, Hangup Detection, Answer Detection, Caller ID Detection |
Security/ IP Services | |
Firewall Network
Nat Traversal Network Protocol |
Built-in Firewall, IP Blocklist, Attack Alert |
DHCP, DDNS, OpenVPN, Static Route, VLAN | |
Static NAT, STUN | |
FTP, TFTP, HTTP, HTTPS, SSH | |
Management | |
Protocol Provisioning
Configuration |
TR-069 |
Web GUI, Auto Provisioning, Backup and Restore, Firmware Upgrade by HTTP/TFTP | |
Remote Management*, Packet Capture, System Logs, Voice Menu for FXS Gateways Basic Configuration, API | |
Connectivity | |
Signaling Caller ID
Disconnect Methods Short & Long Haul |
FXO Loop Start, FXO Kewl Start |
BELL202, ETSI (V23), NTT (V23-Japan), and DTMF-based CID | |
Busy Tone, Polarity Reversal | |
3REN, up to 1.5 km on 24 AWG wire | |
Physical | |
Power
Dimensions (L × W × H) (mm) Operation Temperature Storage Temperature Humidity Mounting |
AC 100-240V (12V 5.5A) |
440 × 250 × 44 | |
0°C to 40°C, 32°F to 104°F | |
-20°C to 65°C, -4°F to 149°F | |
10-90% non-condensing | |
Desktop, Rack-mount |
