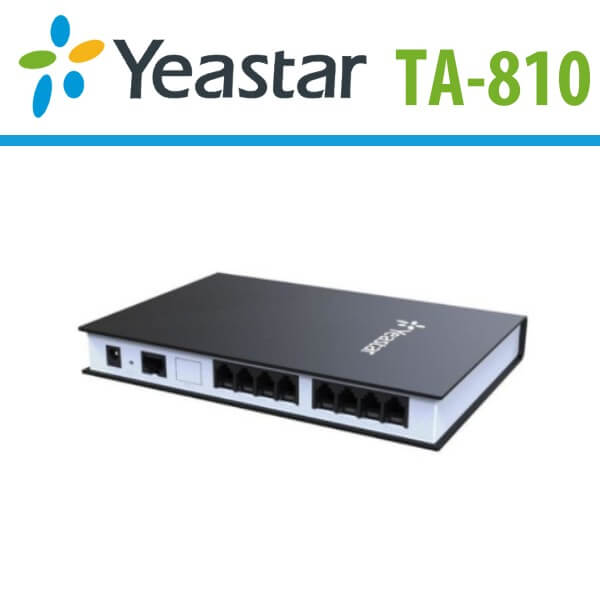

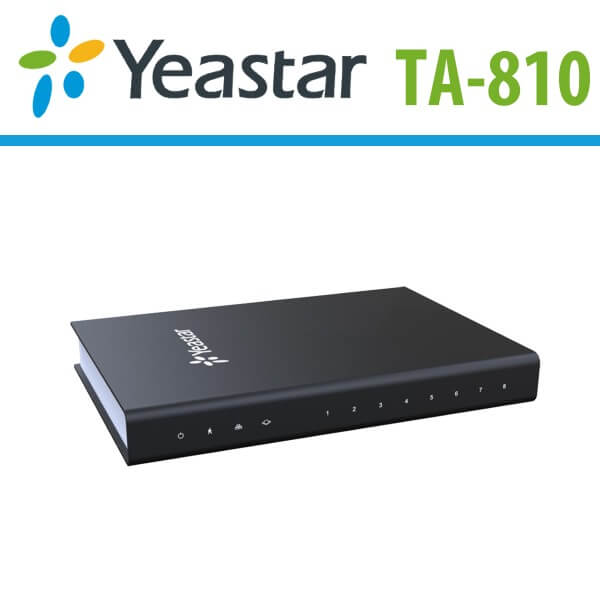

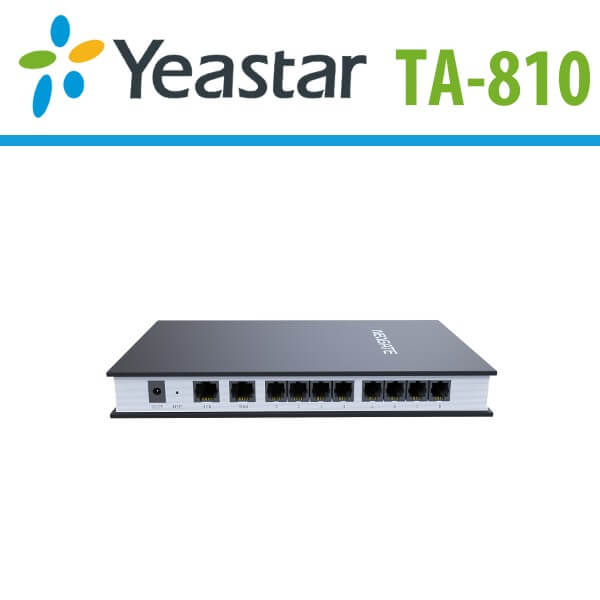

Yeastar TA810 Dubai
The Yeastar TA810 Dubai is a powerful analog telephone adapter that provides businesses with a cost-effective solution for connecting up to 8 analog phones or fax machines to a VoIP network. The device offers a range of advanced features and supports a wide range of voice codecs, making it an ideal choice for businesses of all sizes.
One of the key advantages of the Yeastar TA810 Dubai is its flexibility. The device supports a wide range of voice codecs, including G.711, G.723, G.726, G.729A/B, and iLBC. This allows businesses to choose the codec that best suits their needs, depending on factors such as bandwidth and call quality. The device also supports a range of advanced features such as caller ID, call waiting, call forwarding, and 3-way conferencing.
The Yeastar TA810 Dubai can be easily configured using a web-based user interface. The user interface is intuitive and easy to use, even for non-technical users. It provides access to all the features of the device, including call routing, SIP trunking, and other advanced features. The device can be configured to work with a wide range of SIP-based VoIP providers, ensuring compatibility with most VoIP systems.
In terms of call quality, the Yeastar TA810 Dubai offers excellent voice clarity and reliability. It uses advanced voice codecs and echo cancellation technology, which helps to eliminate any delays or distortion during calls. The device also supports T.38 fax relay, ensuring reliable fax transmission over a VoIP network.
The Yeastar TA810 Dubai is designed for reliability and durability. It features a robust metal casing that protects it from physical damage and helps to dissipate heat. The device also supports a range of security features, including TLS, SRTP, and HTTPS, ensuring that all communications are secure and protected from eavesdropping and hacking.
Overall, the Yeastar TA810 Dubai is an excellent choice for businesses that need to connect their analog equipment to a VoIP network. It offers a range of advanced features, including caller ID, call waiting, call forwarding, and 3-way conferencing, all at an affordable price point. Its flexibility, reliability, and ease of use make it an ideal solution for businesses of all sizes.
Yeastar TA810 Specifications
| Interfaces | |||
| Ports
Telephony Interfaces LAN Indicators |
4/8 FXO Ports | ||
| RJ11 | |||
| 1 10/100Mbps | |||
| Ports Status and Activity LEDs | |||
| Media Processing | |||
| Protocol Transport Codec
Voice Capability DTMF Mode Fax QoS |
SIP (RFC3261), IAX2 | ||
| UDP, TCP, TLS, SRTP | |||
| G.711 (alaw/ulaw), G.722, G.723, G.726, G.729A/B, GSM, ADPCM | |||
| ITU-T G.168 LEC Echo Cancellation, Dynamic Jitter Buffer, PLC | |||
| RFC2833, SIP Info, In-band | |||
| T.30 | |||
| DiffServ, ToS, 802.1 P/Q VLAN tagging | |||
| Telephony Features | |||
|
Call Handling |
Programmable AC Impedance, Hangup Detection, Answer Detection, Caller ID Detection |
||
| Security/ IP Services | |||
| Firewall Network
Nat Traversal Network Protocol |
Built-in Firewall, IP Blocklist, Attack Alert | ||
| DHCP, DDNS, OpenVPN, Static Route, VLAN | |||
| Static NAT, STUN | |||
| FTP, TFTP, HTTP, HTTPS, SSH | |||
| Management | |||
| Protocol Provisioning
Configuration |
TR-069 | ||
| Web GUI, Auto Provisioning, Backup and Restore, Firmware Upgrade by HTTP/TFTP | |||
| Remote Management*, Packet Capture, System Logs, Voice Menu for FXS Gateways Basic Configuration, API | |||
| Connectivity | |||
| Signaling Caller ID
Disconnect Methods Short & Long Haul |
FXO Loop Start, FXO Kewl Start | ||
| BELL202, ETSI (V23), NTT (V23-Japan), and DTMF-based CID | |||
| Busy Tone, Polarity Reversal | |||
| Power
Dimensions (L × W × H) (mm) Operation Temperature Storage Temperature Humidity Mounting |
12V, 1A | ||
| 200 × 137 ×
25 |
|||
| 0°C to 40°C, 32°F to 104°F | |||
| -20°C to 65°C, -4°F to 149°F | |||
| 10-90% non-condensing | |||
