Description

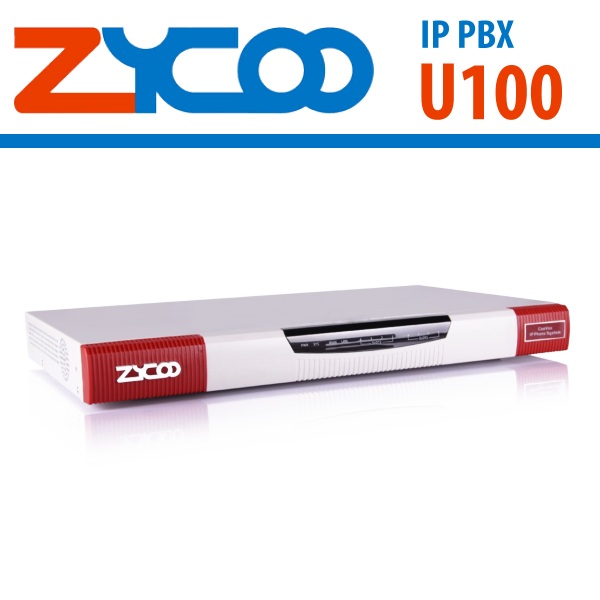

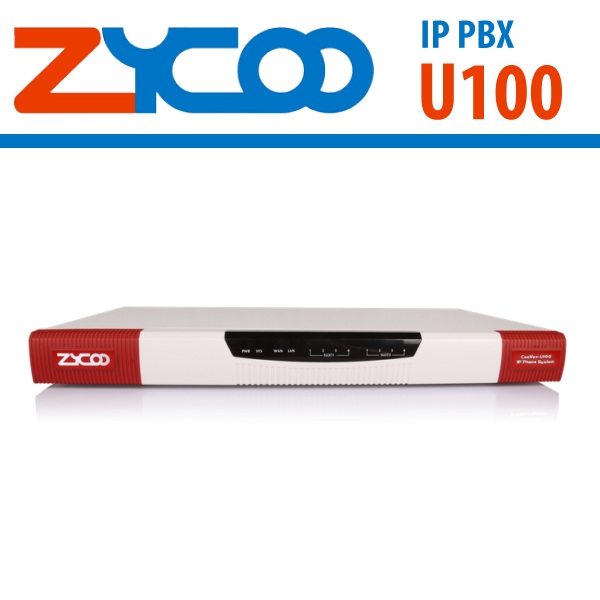

Zycoo U100 Dubai
The Zycoo U100 Dubai is a highly scalable and modular IP PBX system designed for businesses of all sizes. It supports up to 500 SIP extensions and up to 80 concurrent calls, providing ample capacity for growing businesses. The system is equipped with an embedded call center solution, which includes features such as call routing, queuing, and monitoring, as well as a web-based management interface for easy configuration and maintenance.
The Zycoo U100 Dubai supports a range of advanced telephony features, including call forwarding, call waiting, caller ID, and three-way calling, as well as a host of security features such as firewall, VPN, and TLS encryption. It also supports a variety of IP phones and SIP trunks from a range of vendors, making it a flexible and versatile option for businesses looking to upgrade their phone system.
One of the key benefits of the Zycoo U100 Dubai is its scalability, which allows businesses to easily add new extensions and lines as their needs grow. The system also supports advanced features such as IVR (interactive voice response) and call recording, making it a powerful tool for businesses looking to improve their customer service and support capabilities.
In addition to its advanced telephony features, the Zycoo U100 Dubai also supports a range of other applications, including email, web server, and file storage, making it a versatile and powerful platform for businesses looking to streamline their operations and reduce costs.
Overall, the Zycoo U100 Dubai is a reliable and powerful IP PBX system that offers a wide range of features and capabilities for businesses of all sizes. With its scalable architecture and support for advanced telephony features and applications, it is a great choice for businesses looking to improve their communication capabilities and streamline their operations.
Zycoo U100 Dubai
Hardware Specifications
| Items | Specifications |
| Telephony Interfaces | 8xFXO/FXS/GSM/WCDMA, 2xE1/T1, 4xBRI Interfaces |
| CPU | 2.41GHz Dual-core Intel Processor |
| RAM | 4GB DDR3L |
| Storage | 16GB EMMC + 500GB HDD |
| USB (Extended Storage Supported) | 2 (Supported File System: FAT16,FAT32,EXTFAT,NTFS,EXT3,EXT4) |
| Ethernet Interface | WAN, LAN (10/100/1000Mbps) |
| Power | AC 100-240V, Max. 1.5A |
| Dimension | 440x222x44mm (19” 1U industry standard rack-mountable chassis) |
Software Specifications
System Capacity
✓ 500 Extensions ✓ Unlimited IVR Levels
✓ 100 Simultaneous Calls ✓ 200 SIP/IMS Trunks (Max)
✓ 100 Conference Attendees ✓ 500000 CDR History
✓ 7500hrs Recording/Voicemail (Internal Storage) ✓ 10000 Phonebook Contacts
✓ 1-31 EX16S Deployment (Recommended) ✓ 50 Paging Members
Protocols & Codecs
✓ SIP(RFC3261), IAX2
✓ DTMF(RFC4733, SIPINFO, In-Band)
✓ Transport Protocols: UDP, TCP, TLS, SRTP
✓ Network Protocols: IPv4, IPv6, VLAN, DHCP, PPPoE, NTP, SNTP, TFTP, SSH, HTTPS, LDAP
✓ Video Codecs: VP8, H.264, H.263+, H.263, H.261
✓ Audio Codecs: Opus, G.722, G.711(a, u), G.729, G.726, GSM, SPEEX, AMR, AMR-WB
Telephony Features
✓ Call Queue ✓ IVR (Multi-layer) ✓ DISA ✓ Time Conditions
✓ Ring Group ✓ Caller ID ✓ Smart DID ✓ Paging & Intercom
✓ Call Forward ✓ Call Spy ✓ Blacklist ✓ One Number Stations
✓ Call Transfer ✓ Video Call ✓ Voicemail ✓ Music On Ringback
✓ Call Pickup ✓ 3-way Calling ✓ Wakeup Call ✓ Distinctive Ringtone
✓ Call Parking ✓ Conference Call ✓ PIN Code ✓ Auto Call Recording
✓ Call Waiting ✓ Follow Me ✓ Do Not Disturb ✓ One Touch Recording
✓ Speed Dial ✓ Call Back ✓ Switch Call ✓ Web Extensions (WebRTC)
Feature Highlights
✓ Quick Installation Guide ✓ SIP Proxy (NAT Traversal)
✓ Softphone APP Auto Provisioning (QR Code Scan) ✓ Voicemail to Email
✓ IP Phone Auto Provisioning (PNP & Quick Register Code) ✓ Fax to Email
✓ LDAP Phonebook Auto Configure (H81, H83) ✓ Multilingual Web UI
✓ EX16S Auto Provisioning ✓ Multilingual Voice Prompts
Multi-level User Administration
✓ Admin user: All Privileges. ✓ Billing user
✓ Operator user: Extensions, faxes, CDR, recordings, etc. ✓ Conference manager
✓ Extension user: WebRTC, recordings, voicemails, call logs, etc.
Security
✓ Firewall based on iptables ✓ IP Black/White List
✓ Intrusion auto detection and prevention ✓ Extension Permit IP
✓ Geo-IP (Security policy based on IP address geographical locations)
Network Features
✓ Network (WAN): Static IP, DHCP, PPPoE ✓ DDNS (Dynamic Domain Name Server)
✓ VPN: PPTP, OpenVPN, IPSec, L2TP ✓ VLAN (WAN & LAN Interface)
(Server and Client) ✓ Virtual IP
✓ Static Routing ✓ Local Domain Name Service
✓ DHCP (Server and Client) ✓ SIP Proxy (NAT Traversal)
