Description

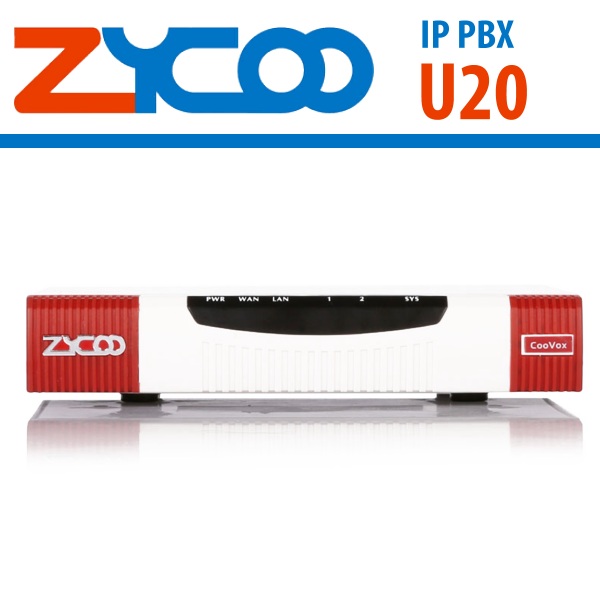

Zycoo U20 Dubai
The Zycoo U20 Dubai is a powerful, affordable IP PBX system designed for small and medium-sized businesses. It offers a complete set of features, including voice, data, video, and mobility services, all in one box. The Zycoo U20 Dubai is a highly reliable and scalable solution that supports up to 30 extensions and 20 concurrent calls, making it perfect for businesses with a small number of users.
The Zycoo U20 Dubai offers advanced features such as call recording, IVR, call forwarding, and conference calling. It also supports a range of protocols, including SIP, IAX2, and H.323, allowing you to easily connect with other systems and devices. The Zycoo U20 Dubai can be managed through a web-based interface, making it easy to set up and configure.
In addition to its powerful telephony features, the Zycoo U20 Dubai also offers advanced networking capabilities, including VLAN, VPN, and QoS, ensuring a high-quality, secure voice and data transmission. The Zycoo U20 Dubai is also equipped with a built-in firewall, ensuring the highest level of security for your business communications.
The Zycoo U20 Dubai is designed to be easy to use and maintain, with a simple and intuitive web-based interface that allows you to manage all aspects of your telephony system from a single location. It also includes a range of monitoring tools, including call logging, CDR reports, and real-time status monitoring, allowing you to keep a close eye on your system’s performance.
Overall, the Zycoo U20 Dubai is a powerful and affordable IP PBX system that offers a complete set of features for small and medium-sized businesses. Its advanced telephony and networking capabilities, along with its ease of use and maintenance, make it an ideal solution for businesses looking for an affordable and reliable communication system.
Zycoo U20 Specifications

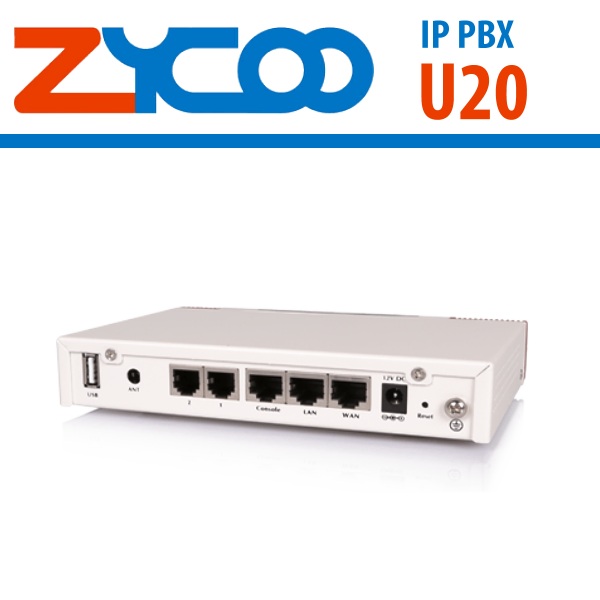

Hardware Specifications
| Items | Specifications |
| Telephony Interfaces | 2xRJ11 Interfaces (FXO/FXS); 1xGSM (Optional) |
| CPU | 1GHz ARMv7 Processor |
| SDRAM | 512MB DDR3 |
| Storage | 16GB SD Card |
| USB (Extended Storage Supported) | 1 (Supported File System: FAT16,FAT32,EXTFAT,NTFS,EXT3,EXT4) |
| Ethernet Interface | WAN, LAN (10/100Mbps) |
| Power | DC 12V, 1A |
| Dimension | 170x116x30 (Desktop based) |
Software Specifications
System Capacity
✓ 32 Extensions ✓ Unlimited IVR Levels
✓ 15 Simultaneous Calls ✓ 20 SIP/IMS Trunks (Max)
✓ 15 Conference Attendees ✓ 500000 CDR History
✓ 150hrs Recording/Voicemail (Internal Storage) ✓ 10000 Phonebook Contacts
✓ 1 or 2 EX16S Deployment (Recommended) ✓ 15 Paging Members
Protocols & Codecs
✓ SIP(RFC3261), IAX2
✓ DTMF(RFC4733, SIPINFO, In-Band)
✓ Transport Protocols: UDP, TCP, TLS, SRTP
✓ Network Protocols: IPv4, IPv6, VLAN, DHCP, PPPoE, NTP, SNTP, TFTP, SSH, HTTPS, LDAP
✓ Video Codecs: VP8, H.264, H.263+, H.263, H.261
✓ Audio Codecs: Opus, G.722, G.711(a-law, u-law), G.729, G.726, GSM, SPEEX, AMR, AMR-WB
Telephony Features
✓ Call Queue ✓ IVR (Multi-layer) ✓ DISA ✓ Time Conditions
✓ Ring Group ✓ Caller ID ✓ Smart DID ✓ Paging & Intercom
✓ Call Forward ✓ Call Spy ✓ Blacklist ✓ One Number Stations
✓ Call Transfer ✓ Video Call ✓ Voicemail ✓ Music On Ringback
✓ Call Pickup ✓ 3-way Calling ✓ Wakeup Call ✓ Distinctive Ringtone
✓ Call Parking ✓ Conference Call ✓ PIN Code ✓ Auto Call Recording
✓ Call Waiting ✓ Follow Me ✓ Do Not Disturb ✓ One Touch Recording
✓ Speed Dial ✓ Call Back ✓ Switch Call ✓ Call Detailed Records (CDR)
Feature Highlights
✓ Quick Installation Guide ✓ SIP Proxy (NAT Traversal)
✓ Softphone APP Auto Provisioning (QR Code Scan) ✓ Voicemail to Email
✓ IP Phone Auto Provisioning (PNP, Quick Register Code) ✓ Fax to Email
✓ LDAP Phonebook Auto Configure (H81, H83) ✓ Multilingual Web UI
✓ EX16S Auto Provisioning ✓ Multilingual Voice Prompts
Multi-level User
Administration
✓ Admin user: All Privileges. ✓ Billing user
✓ Operator user: Extensions, faxes, CDR, recordings, etc. ✓ Conference manager
✓ Extension user: WebRTC, recordings, voicemails, call logs, etc.
Security
✓ Firewall based on iptables ✓ IP Black/White List
✓ Intrusion auto detection and prevention ✓ Extension Permit IP
✓ Geo-IP (Security policy based on IP address geographical location)
Network Features
✓ Network (WAN): Static IP, DHCP, PPPoE ✓ DDNS (Dynamic Domain Name Server)
✓ VPN: PPTP, OpenVPN, IPSec, L2TP ✓ VLAN (WAN & LAN Interface)
(Server and Client) ✓ Virtual IP
✓ Static Routing ✓ Local Domain Name Services
✓ DHCP (Server and Client) ✓ SIP Proxy (NAT Traversal)
