Description

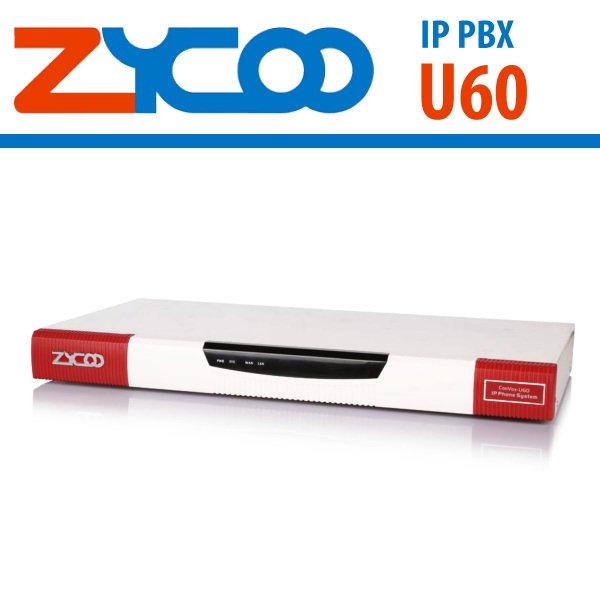

Zycoo U60 Dubai

Zycoo U60 Dubai is a reliable and cost-effective IP PBX system that caters to small and medium-sized businesses. It is designed to support up to 100 extensions and 30 concurrent calls. The system comes equipped with a range of advanced features such as call recording, call routing, and voicemail to email.

The Zycoo U60 Dubai offers a user-friendly web-based interface that allows easy configuration and management of the system. The device is built with high-performance hardware that guarantees high-quality voice communication, even in congested networks. The Zycoo U60 Dubai also supports a wide range of SIP endpoints, including IP phones, softphones, and SIP trunks from multiple providers.

The Zycoo U60 Dubai offers a range of security features to ensure the confidentiality and integrity of communications, including support for TLS/SRTP encryption, HTTPS web interface, and firewall protections. The device can also be configured for remote access, enabling users to connect and manage the system from anywhere.

The Zycoo U60 Dubai is a cost-effective solution for businesses looking for a feature-rich and reliable IP PBX system. It offers a low upfront cost and a range of advanced features that are typically only found in higher-end systems. Additionally, its user-friendly interface and plug-and-play design make it easy to deploy and manage, even for users with limited technical expertise.

Zycoo U60 Specifications

Hardware Specifications

Software Specifications

System Capacity

✓ 200 Extensions ✓ Unlimited IVR Levels

✓ 60 Simultaneous Calls ✓ 100 SIP/IMS Trunks (Max)

✓ 60 Conference Attendees ✓ 500000 CDR History

✓ 150hrs Recording/Voicemail (Internal Storage) ✓ 10000 Phonebook Contacts

✓ 1-12 EX16S Deployment (Recommended) ✓ 50 Paging Members

Protocols & Codecs

✓ SIP(RFC3261), IAX2

✓ DTMF(RFC4733, SIPINFO, In-Band)

✓ Transport Protocols: UDP, TCP, TLS, SRTP

✓ Network Protocols: IPv4, IPv6, VLAN, DHCP, PPPoE, NTP, SNTP, TFTP, SSH, HTTPS, LDAP

✓ Video Codecs: VP8, H.264, H.263+, H.263, H.261

✓ Audio Codecs: Opus, G.722, G.711(a-law, u-law), G.729, G.726, GSM, SPEEX, AMR, AMR-WB

Telephony Features

✓ Call Queue ✓ IVR (Multi-layer) ✓ DISA ✓ Time Conditions

✓ Ring Group ✓ Caller ID ✓ Smart DID ✓ Paging & Intercom

✓ Call Forward ✓ Call Spy ✓ Blacklist ✓ One Number Stations

✓ Call Transfer ✓ Video Call ✓ Voicemail ✓ Music On Ringback

✓ Call Pickup ✓ 3-way Calling ✓ Wakeup Call ✓ Distinctive Ringtone

✓ Call Parking ✓ Conference Call ✓ PIN Code ✓ Auto Call Recording

✓ Call Waiting ✓ Follow Me ✓ Do Not Disturb ✓ One Touch Recording

✓ Speed Dial ✓ Call Back ✓ Switch Call ✓ Call Detailed Records (CDR)

Feature Highlights

✓ Quick Installation Guide ✓ SIP Proxy (NAT Traversal)

✓ Softphone APP Auto Provisioning (QR Code Scan) ✓ Voicemail to Email

✓ IP Phone Auto Provisioning (PNP & Quick Register Code) ✓ Fax to Email

✓ LDAP Phonebook Auto Configure (H81, H83) ✓ Multilingual Web UI

✓ EX16S Auto Provisioning ✓ Multilingual Voice Prompts

Multi-level User Administration

✓ Admin user: All Privileges. ✓ Billing user

✓ Operator user: Extensions, faxes, CDR, call recordings, etc. ✓ Conference manager

✓ Extension user: WebRTC, recordings, voicemails, call logs, etc.

Security

✓ Firewall based on iptables ✓ IP Black/White List

✓ Intrusion auto detection and prevention ✓ Extension Permit IP

✓ Geo-IP (Security policy based on IP address geographical location)

Network Features

✓ Network (WAN): Static IP, DHCP, PPPoE ✓ DDNS (Dynamic Domain Name Server)

✓ VPN: PPTP, OpenVPN, IPSec, L2TP ✓ VLAN (WAN & LAN Interface)

(Server and Client) ✓ Virtual IP

✓ Static Routing ✓ Local Domain Name Services

✓ DHCP (Server and Client) ✓ SIP Proxy (NAT Traversal)
